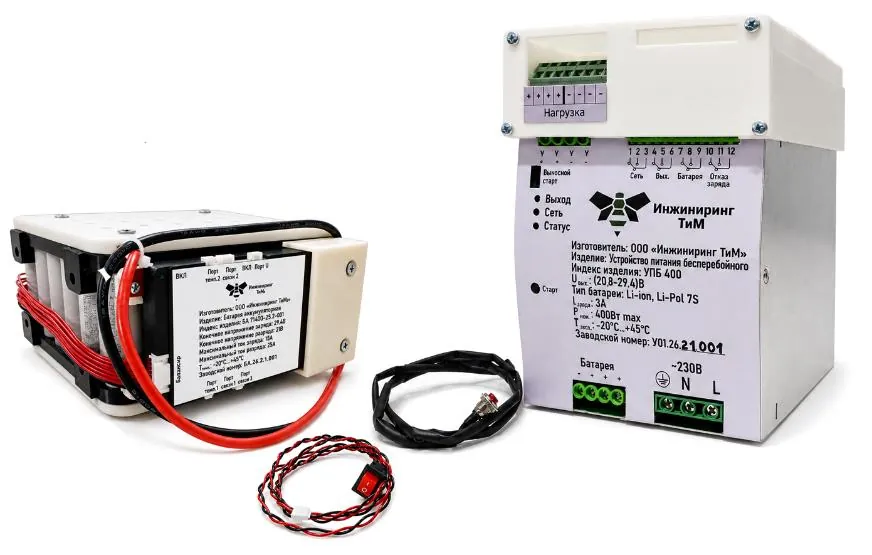

Uninterruptible power supply
UPS400
Powers the customer load with DC — from ~230 V mains or from the included battery pack.
400 W
Rated output power
60 min
Battery runtime at rated load
−20…+40 °C
Operating temperature range
Capabilities
Powers the load from ~230 V mains or from the included battery
Charges the battery while powering the load when on mains
Built-in diagnostics
Simple to operate and maintain
Applications
Can be used as part of special-purpose equipment, including automated workstations.
Main technical specifications
| Parameter | Value |
|---|---|
| Input voltage | ~230 V AC, 50 Hz |
| Max mains current | 3 A |
| Included battery | BA 27400-25.2-001 |
| Rated output power | 400 W |
| Battery runtime | at least 60 minutes at rated load |
| Output voltage range | (20.9 – 29.4) V, depends on battery state |
| Operating temperature | −20 °C to +40 °C |
| Short-circuit protection | Yes |
| Reverse-polarity protection | Yes |
| Unit mass | 2 kg |
| Battery mass | 3.7 kg |
| Unit dimensions (L × D × H) | 160 × 120 × 170 mm |
| Battery dimensions (L × W × H) | 180 × 175 × 95 mm |
